In modern piping systems, the need for durable, high-pressure connections is undeniable. Whether in oil refineries, chemical plants, power generation, or offshore applications, the quality of fittings determines the safety and reliability of the entire setup. Among the different types of fittings available, forged threaded fittings stand out for their superior strength, corrosion resistance, and precise threading.
As a leading forged threaded fitting supplier, we ensure that every fitting we deliver meets stringent international standards and is designed to perform in the most demanding environments.
What Are Forged Threaded Fittings?
Forged threaded fittings are essential components used in piping systems to connect pipes, valves, pumps, and other equipment. Unlike welded fittings, they do not require welding but instead use threads to join components securely. This makes them ideal for smaller pipelines or where welding is not feasible due to safety concerns or limited access.
These fittings are manufactured through the forging process, which involves shaping metal under high pressure and temperature to increase its mechanical properties. The forging process ensures a dense, uniform grain structure that enhances strength, toughness, and fatigue resistance.

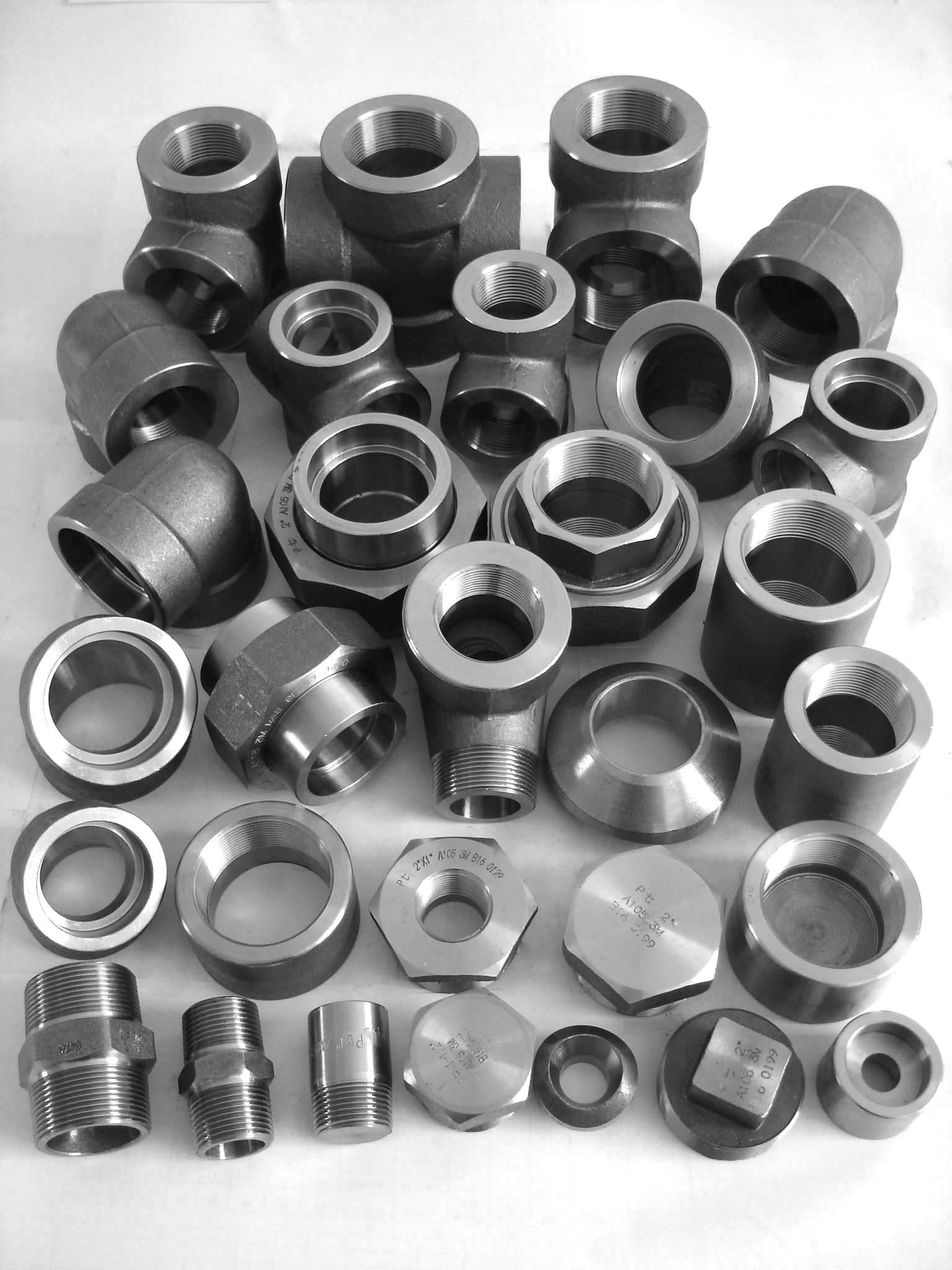

Types of Forged Threaded Fittings
Forged threaded fittings come in various shapes and sizes, each designed to serve a specific function in a piping system. Some of the most common types include:
1. Threaded Elbows (45° and 90°)
Elbows are used to change the direction of the pipeline. The 90° elbow changes the direction by a right angle, while the 45° elbow provides a gentler change in direction. These are commonly used in compact spaces and high-pressure systems.
2. Threaded Tees
A threaded tee fitting splits or combines the flow of fluids. It features one inlet and two outlets positioned at 90° angles. They are used when three pipes need to be connected.
3. Threaded Couplings
Couplings connect two pipes of the same diameter. They can be full couplings or half couplings depending on the requirement.
4. Threaded Unions
Unions allow easy disconnection of pipes without cutting. They are ideal for systems that require frequent maintenance or inspection.
5. Threaded Plugs and Bushings
Plugs are used to close pipe ends, while bushings reduce the size of female threaded openings. Both are vital for system customization and maintenance.
6. Threaded Cross
A cross fitting connects four pipes, typically used where multiple flow lines meet. They ensure even distribution of flow within the system.
Materials Used in Forged Threaded Fittings
The choice of material determines how well a fitting performs in a particular environment. Forged threaded fittings are available in several materials to meet diverse industry needs:
- Stainless Steel (ASTM A182 F304 / F316): Excellent corrosion resistance and strength, suitable for food processing, chemical, and pharmaceutical industries.
- Carbon Steel (ASTM A105): Offers high strength and toughness, ideal for high-temperature and pressure systems.
- Alloy Steel (ASTM A182 F11 / F22): Used in power plants and refineries due to their superior performance in high-temperature environments.
- Duplex and Super Duplex Stainless Steel: Known for exceptional corrosion and pitting resistance in marine and offshore applications.
- Nickel Alloys (Inconel, Monel, Hastelloy): Used in highly corrosive and high-temperature applications.
Manufacturing Process of Forged Threaded Fittings
The production of forged threaded fittings involves several precise steps to ensure durability and quality:
- Raw Material Selection: High-quality metal billets are chosen based on the required material grade.
- Forging: The billets are heated and forged under high pressure to achieve the desired shape and strength.
- Machining: Threads and dimensions are precisely machined to meet tolerance and standard specifications.
- Heat Treatment: This step improves mechanical properties and removes internal stresses.
- Inspection and Testing: Each fitting undergoes non-destructive tests such as hydrostatic testing, magnetic particle inspection, and visual checks to ensure flawlessness.
- Surface Finishing: Depending on customer needs, fittings are polished, galvanized, or coated for added corrosion protection.
Standards and Specifications
As a reputed forged threaded fitting supplier, we manufacture products that comply with leading international standards to ensure compatibility and performance. These include:
- ASME B16.11 – Forged Fittings, Socket-Welding, and Threaded
- ASTM A105 / A182 – Carbon and Alloy Steel Forgings
- MSS-SP-79 / MSS-SP-83 / MSS-SP-95 – Forged fittings specifications
- NACE MR0175 – For sour service applications
These standards ensure that every fitting we supply performs reliably in high-pressure, high-temperature, or corrosive environments.
Applications of Forged Threaded Fittings
Forged threaded fittings are widely used across several industries because of their strength, leak-proof performance, and easy installation. Some key industries include:
- Oil and Gas Industry: Used in high-pressure pipelines for transporting crude oil, gas, and petroleum products.
- Chemical and Petrochemical Plants: Resistant to corrosive chemicals, ensuring safety and longevity.
- Power Generation: Ideal for steam, cooling water, and fuel lines in power plants.
- Marine and Offshore Applications: Withstands saline environments and extreme conditions.
- Food and Beverage Industry: Stainless steel threaded fittings are used due to their hygienic properties.
- Pharmaceutical and Biotech: Ensures contamination-free fluid transfer systems.
Advantages of Forged Threaded Fittings
Forged threaded fittings offer numerous advantages that make them a preferred choice for many engineers and contractors:
- Leak-Proof Connections: Threaded joints ensure tight sealing, minimizing leakage risks.
- Easy Installation: No welding required; installation and maintenance are simple and cost-effective.
- High Strength and Durability: Forged construction enhances toughness and resistance to stress.
- Corrosion and Heat Resistance: Suitable for extreme temperatures and corrosive environments.
- Reusability: Can be easily dismantled and reused, reducing replacement costs.
- Versatility: Available in multiple materials, pressure ratings, and sizes for diverse applications.
Quality Assurance and Testing
As a trusted forged threaded fitting supplier, we follow a rigorous quality control process to ensure each product meets the highest standards. Our quality assurance includes:
- Hydrostatic Pressure Testing to verify strength and tightness.
- Hardness and Tensile Testing to confirm mechanical integrity.
- Dimensional Inspection using precision tools to ensure exact thread and size specifications.
- Corrosion Testing for materials intended for marine or chemical use.
- Third-Party Inspection upon request, ensuring transparency and trust.
Why Choose Us as Your Forged Threaded Fitting Supplier
Choosing the right supplier can make all the difference in the performance and reliability of your piping system. Here’s why clients across industries trust us:
- Extensive Inventory: We maintain a ready stock of forged threaded fittings in various sizes, grades, and types.
- Global Standards Compliance: All products adhere to ASME, ASTM, and ANSI standards.
- Customization Options: We offer custom threading, materials, and finishes based on project needs.
- Quick Delivery: With efficient logistics and supply chain management, we ensure timely delivery worldwide.
- Competitive Pricing: Our cost-effective solutions never compromise on quality.
- Technical Expertise: A team of skilled engineers and quality inspectors ensures precision at every step.
Sustainability and Responsible Manufacturing
We are committed to sustainable manufacturing practices. Our production processes are optimized to reduce waste, energy consumption, and environmental impact. We recycle metal scraps and use eco-friendly lubricants and cooling systems to ensure green operations.
Conclusion
Forged threaded fittings are critical to the integrity and efficiency of any piping system. Their exceptional strength, corrosion resistance, and ease of installation make them a preferred choice in numerous industries.
