In modern industrial systems, maintaining the integrity of pipelines and mechanical systems under varying conditions of temperature, pressure, and vibration is crucial. One of the most effective components designed for this purpose is metal expansion bellows. These flexible devices are used extensively in piping systems to absorb thermal expansion, vibration, and movement, preventing structural damage and enhancing system durability. From power plants to chemical industries, metal expansion bellows play a vital role in ensuring safety, efficiency, and longevity of operations.
What Are Metal Expansion Bellows?
Metal expansion bellows, also known as expansion joints, are flexible elements designed to compensate for movement and thermal expansion in piping and ducting systems. They are typically constructed from stainless steel or other high-grade alloys that can endure high pressure and temperature fluctuations.
Their corrugated or convoluted structure allows them to compress, extend, or flex, thereby absorbing mechanical stresses that could otherwise damage rigid piping systems. They are essential in industries where heat and mechanical forces are continuously acting on metal components.
How Metal Expansion Bellows Work
When a pipeline is subjected to high temperatures, the metal tends to expand. Without a flexible component to accommodate this expansion, pipes could warp, crack, or cause joint failures. Metal expansion bellows are installed between two sections of a pipeline to absorb these expansions and contractions.
The flexible bellows element, made of multiple layers of thin metal, allows the joint to flex in axial, lateral, and angular directions. By doing so, it isolates vibration, reduces stress, and maintains system alignment even under extreme conditions.
Key Functions of Metal Expansion Bellows
- Absorption of Thermal Expansion
They compensate for changes in length caused by temperature fluctuations in pipelines. - Vibration Isolation
They prevent transmission of mechanical vibrations from equipment like pumps, turbines, and compressors to the piping system. - Pressure Balancing
Bellows can equalize internal pressure, ensuring stable operation in high-pressure environments. - Protection Against Fatigue and Stress
By minimizing mechanical strain on pipes and joints, they extend the overall lifespan of the system.
Types of Metal Expansion Bellows
Metal expansion bellows come in different designs to suit specific industrial needs. Below are the most common types:
1. Axial Expansion Bellows
These are designed to absorb movements along the pipe’s axis, usually caused by thermal expansion or contraction. They are commonly used in straight pipe runs.
2. Lateral Expansion Bellows
These bellows absorb lateral movements perpendicular to the axis of the pipeline. They are ideal for systems where the direction of movement is side-to-side.
3. Angular Expansion Bellows
These are designed to accommodate angular rotation in piping systems, typically used in configurations involving elbows.

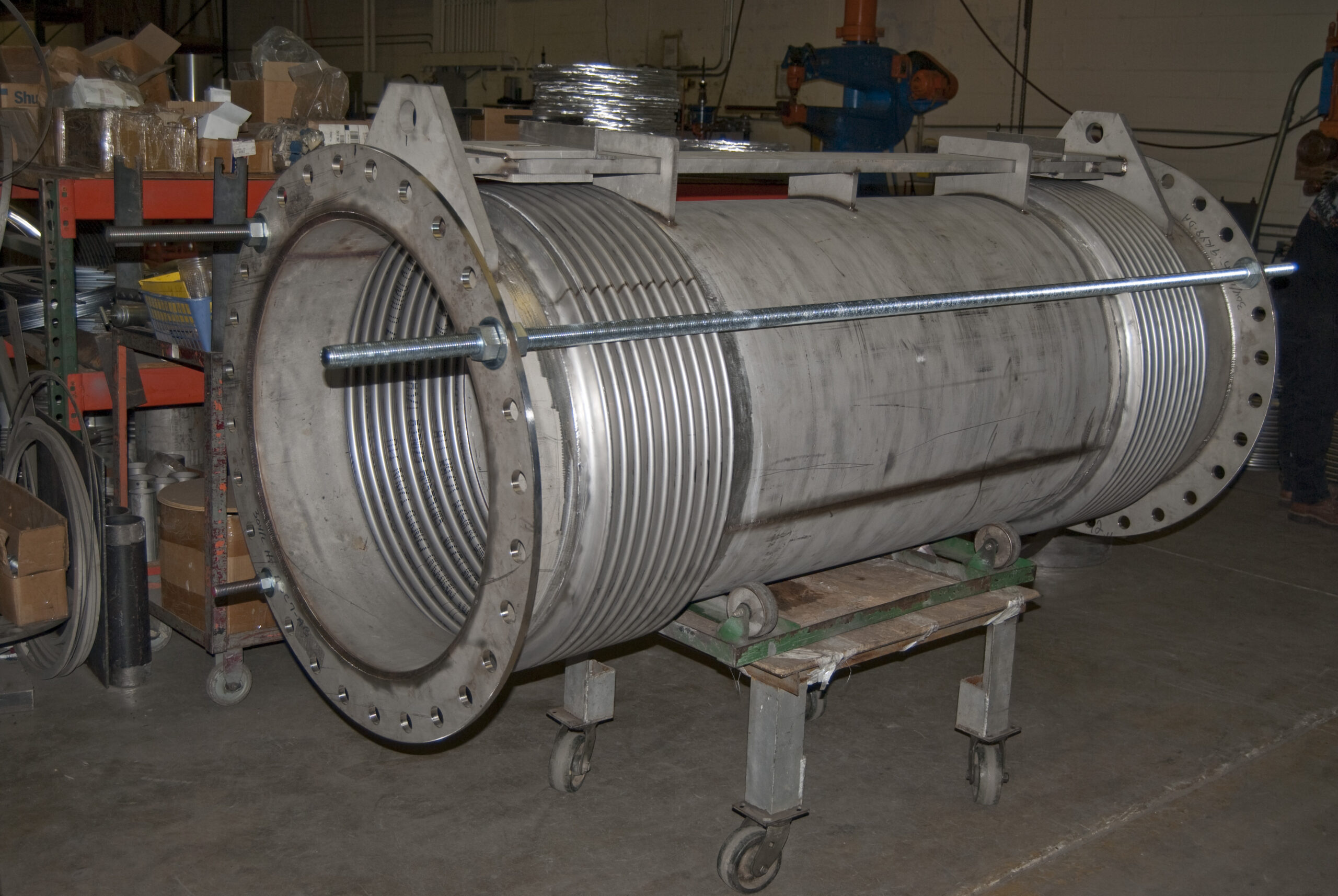

4. Universal Expansion Bellows
A combination of axial and lateral designs, these bellows handle multiple types of movements simultaneously. They are useful in complex piping layouts.
5. Pressure Balanced Bellows
Used in high-pressure systems, these bellows include balancing chambers that absorb pressure thrust, allowing for smoother operation.
6. Hinged and Gimbal Bellows
These are special designs used where large angular deflections occur. Hinged bellows allow movement in one plane, while gimbal bellows allow multi-plane flexibility.
Materials Used in Manufacturing
The performance of metal expansion bellows heavily depends on the material used. Common materials include:
- Stainless Steel (304, 316, 321): Offers high resistance to corrosion and temperature.
- Inconel and Hastelloy: Used in extreme temperature and chemical environments.
- Monel and Titanium: Ideal for corrosive and high-pressure applications.
- Carbon Steel: Cost-effective choice for low-temperature systems.
These materials ensure that the bellows can withstand mechanical fatigue, corrosion, and oxidation over long operational periods.
Applications of Metal Expansion Bellows
Metal expansion bellows are integral to various industrial and commercial sectors due to their ability to manage mechanical stresses efficiently. Some major applications include:
1. Power Generation
Used in boilers, turbines, and exhaust systems to absorb thermal expansion and vibration.
2. Petrochemical and Refinery Plants
Essential for high-pressure pipelines that transport hot gases, steam, and chemicals.
3. HVAC Systems
Used in ducting and piping systems to manage temperature fluctuations and prevent mechanical failure.
4. Shipbuilding and Marine Applications
Installed in exhaust systems and pipelines to withstand movement and vibration from engines.
5. Aerospace and Defense
Used in fuel lines and engine systems that experience rapid temperature and pressure variations.
6. Industrial Machinery
Provide flexibility and vibration absorption in pumps, compressors, and heavy machinery installations.
Advantages of Using Metal Expansion Bellows
- Flexibility: Capable of handling multi-directional movement (axial, lateral, and angular).
- Durability: High resistance to temperature, corrosion, and pressure.
- Vibration Damping: Prevents mechanical fatigue and noise.
- Compact Design: Saves space compared to rigid alternatives.
- Reduced Maintenance: Extends system life and minimizes repair costs.
By integrating these bellows into industrial systems, engineers can reduce downtime and prevent costly system failures.
Installation and Maintenance Considerations
Proper installation and maintenance of metal expansion bellows are essential for optimal performance.
- Alignment: Ensure the pipes are properly aligned before installation. Misalignment can cause premature failure.
- Anchoring and Guides: Use appropriate anchors and pipe guides to control movement.
- Avoid Torsion: Do not twist the bellows during installation.
- Regular Inspection: Periodic inspection for cracks, corrosion, or deformation ensures long service life.
- Pressure Testing: Conduct hydrostatic or pneumatic tests to check integrity before full operation.
Choosing the Right Metal Expansion Bellows
When selecting a metal expansion bellow, consider the following factors:
- Type of movement required (axial, lateral, or angular)
- Operating temperature and pressure
- Pipe diameter and layout
- Medium being transported (gas, liquid, or chemical)
- Space constraints and installation environment
Consulting with experts or referring to specialized manufacturers like Hose Master can ensure the right design and material selection for your specific needs.
Future Trends in Metal Expansion Bellows
Advancements in material science and fabrication technologies are driving innovations in metal expansion bellows. Modern designs are now lighter, more corrosion-resistant, and capable of withstanding higher pressures. Computer-aided simulations help optimize bellow geometry for specific stress conditions, resulting in enhanced reliability and longer service life.
Furthermore, industries are adopting smart monitoring systems that can detect and predict bellow fatigue, helping prevent failures before they occur.
Conclusion
Metal expansion bellows are critical components that ensure the smooth and safe operation of complex piping and mechanical systems. Their ability to absorb thermal expansion, vibrations, and mechanical stresses makes them indispensable in industries worldwide. With proper design, material selection, and maintenance, these components significantly enhance system reliability and operational efficiency.
Whether you are dealing with high-pressure steam systems, chemical processing pipelines, or exhaust systems, investing in high-quality metal expansion bellows ensures safety, longevity, and performance.
